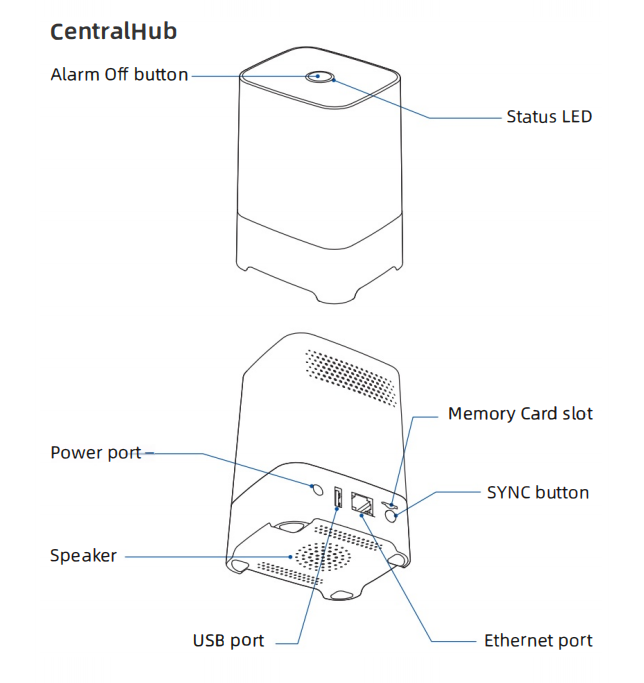

CentralHub includes several buttons, indicators, and ports that help with setup, storage, networking, charging, and alarm management.
Alarm Off Button
Located on the top of CentralHub, this button allows you to quickly silence the built-in siren when an alarm is active.
Status LED
The LED indicator on the top of CentralHub shows the device's current operating status, such as pairing mode, normal operation, and alarm status.
SYNC / RESET Button
Located on the back of CentralHub.
- Press the button twice to enter pairing mode.
- Quickly press and release the SYNC button 4 times. On the 5th press, press and hold the button until you hear the reset prompt tone.
Memory Card Slot
Insert a MicroSD card to enable local video storage.
CentralHub supports MicroSD cards with capacities of up to 2 TB for local event recording and playback.
Ethernet Port
Use the Ethernet port to connect CentralHub directly to your router.
A wired connection is required during the initial setup process and provides the most stable network performance. After setup, CentralHub can be switched to a Wi-Fi connection if you want.
USB Charging Port
The USB port is designed for charging compatible cameras. It is not intended for network connections or USB storage devices.
Power Port
Connect the included power adapter here to power CentralHub. CentralHub is a wired device and must remain connected to power during operation.
Speaker
The built-in speaker provides voice prompts, pairing notifications, and security siren alerts.
When enabled, the speaker can sound an alarm in response to security events detected by connected cameras.
